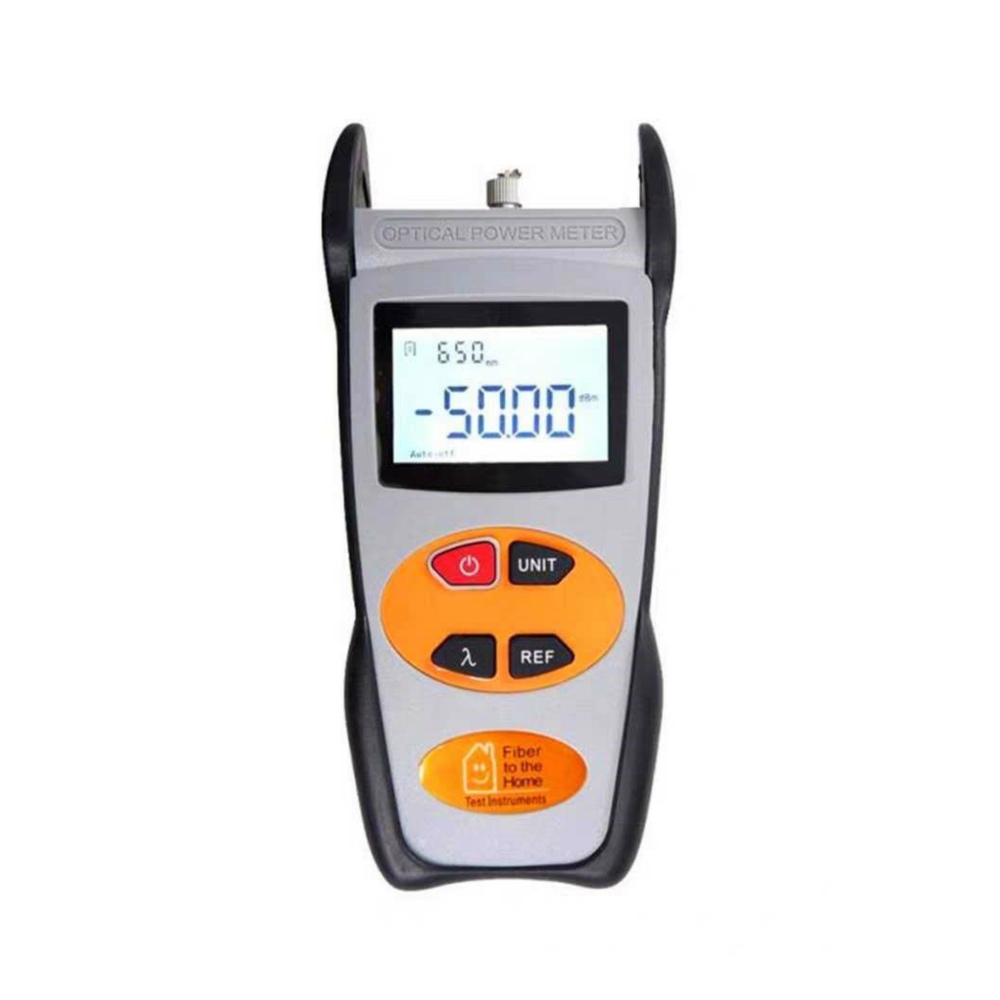

Optical Power Meter

Handheld Optical Power Meter is a self-developed test instrument. For the installation, operation and maintenance of fiber-optic network is designed as a precise, durable, convenient and portable test instrument. Smart appearance with the backlight, auto-shutdown features, wide range of optical power testing, test the accuracy of the precision as well as a common interface design.

Add to quote

Category: Test Equipment

Description
Reviews (0)

Features

High measurement accuracy and display resolution
Backlight function
Auto-off function
Absolute and relative measurement
Quick response and measurement: when power changing, it can track and real-time display the output power
Six calibrated wavelengths: 850nm, 1300nm, 13100nm, 1490nm, 1550nm and 1625nm

Specifications

Measurement Range(dBm)	-70 ~+10	-50~+26
Wavelength range (nm)	800~1650
Calibrated wavelength (nm)	850, 1300, 1310, 1490, 1550, 1625 (optional other wavelengths)
Detector	I nGaAs
Accuracy	±3%
Resolution	0.01
Working temperature (ᵒC)	-10~+60
Storage temperature (ᵒC)	-20~+70
Relative humidity	90% (30ᵒC)
Connector	Movable FC/PC, optional ST, SC
Power supply	3 pcs AAA batteries
Working hours (h)	40
Weight (g)	150
Dimension (mm)	130x64x30
