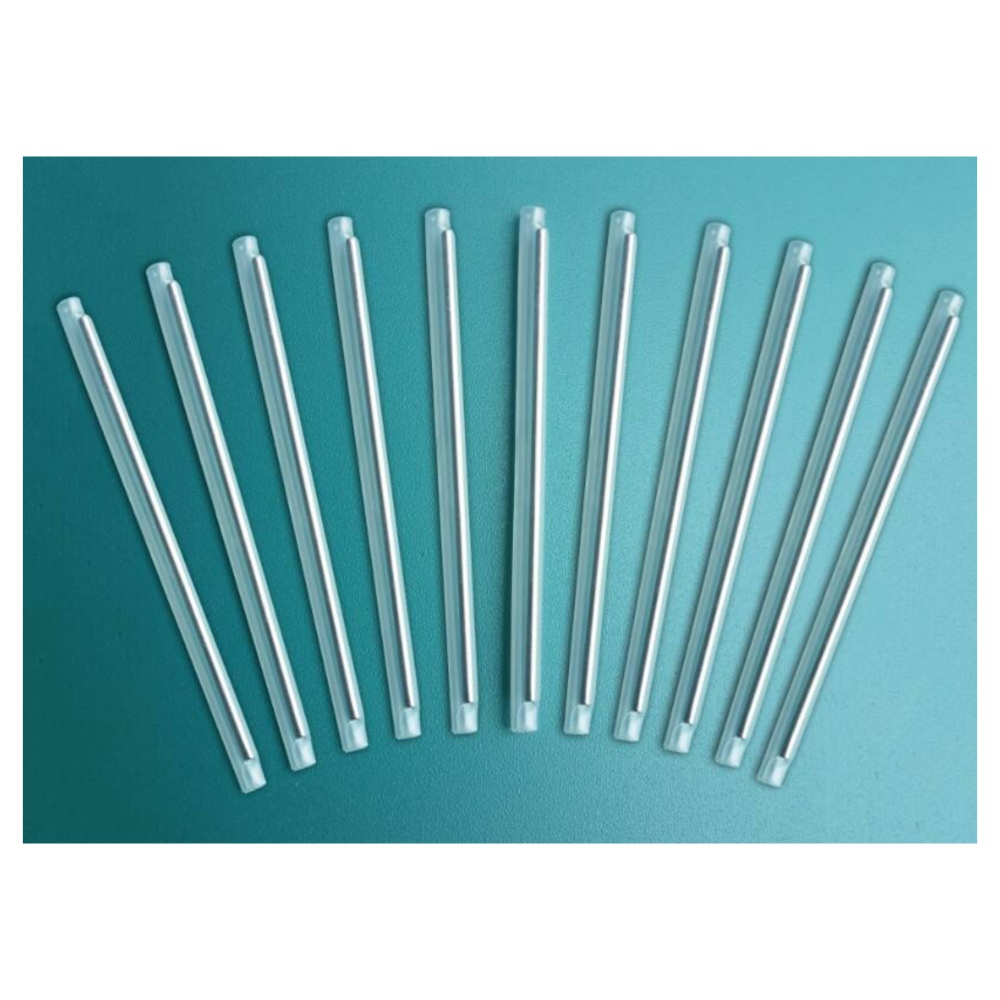

Heat Shrinkable Fiber Optic Splice Protector

This product is made up of cross-linked polyolefin heat-shrinkable tubes, Fusion Tubes, and stainless steel. This protector provides mechanical reinforcement at the joint point and maintains the optic transmission properties of the fiber optic cable.

Add to quote

Category: Accessories

Features & Benefits

Retains optic transmission properties of optical fiber
Reinforces and protects fiber optic splice
Clear sleeve for easy inspection and minimizing damage during installation
One-piece design with hot fusion insert for sealing against moisture and other contaminants
Work temperature:-45℃ -100℃
Minimum fully recovery temperature:120℃, shrink very fast, and very easy to install.
RoHS compliant halogen-free, environmentally friendly

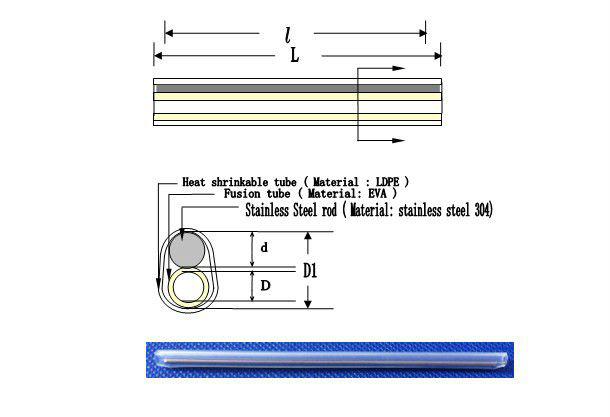

Drawing

Technical Data

Type	Test Method	Typical data
Temperature	IEC 216	-45℃ ~ 100℃
Tensile strength	ASTM D 2671	18MPa
Elongation	ASTM D 2671	700%
Density	ISO R1183D	0.94g/cm3
Dielectric strength	IEC243	25KV/mm
Volume Resistance	IEC243	1015 Ω.com
Dielectric Constant	IEC243	25
Longitudinal Change	ASTM D 2671	±5%
Eccentricity	ASTM D 2671	10%

Type	Splice Protection Sleeves		Fusion Tube		Steel Rod		Package
Type	O.D.after recovered (±0.1mm)	length(L) (±1mm )	Inside dia.(D) (±0.1mm)	Length (±1mm)	Dia.(d) (±0.1mm)	Length (±1mm)	Package
FOSP-3.0x61H	30	61	13	60	15	55	100pcs/bag
FOSP-3.0x55H	30	55	13	55	15	50	100pcs/bag
FOSP-3.0x45H	30	45	13	45	15	40	100pcs/bag
FOSP-3.0x40H	30	40	13	40	15	35	100pcs/bag
FOSP-2.6x61H	26	61	13	61	12	55	100pcs/bag
FOSP-2.6x55H	26	55	13	55	12	50	100pcs/bag
FOSP-2.6x45H	26	45	13	45	12	40	100pcs/bag
FOSP-2.6x40H	26	40	13	40	12	35	100pcs/bag
FOSP-2.4x61H	24	61	17	61	10	55	100pcs/bag
FOSP-2.4x55H	24	55	17	55	10	50	100pcs/bag
FOSP-2.4x45H	24	45	17	45	10	40	100pcs/bag
FOSP-2.4x40H	24	40	17	40	10	35	100pcs/bag
FOSP-2.2x61H	22	61	11	61	10	55	100pcs/bag
FOSP-2.2x55H	22	55	11	55	10	50	100pcs/bag
FOSP-2.2x45H	22	45	11	45	10	40	100pcs/bag
FOSP-2.2x40H	22	40	11	40	10	35	100pcs/bag
FOSP-2.0x61H	20	61	10	61	08	55	100pcs/bag
FOSP-2.0x55H	20	61	10	61	08	50	100pcs/bag
FOSP-2.0x45H	20	61	10	61	08	40	100pcs/bag
FOSP-2.0x40H	20	61	10	61	08	35	100pcs/bag
FOSP-1.4x40H	14	40	05	40	05	39	200pcs/bag
FOSP-1.4x35H	14	35	05	35	05	34	200pcs/bag
FOSP-1.4x30H	14	30	05	30	05	29	200pcs/bag
FOSP-1.4x25H	14	25	05	25	05	24	200pcs/bag
